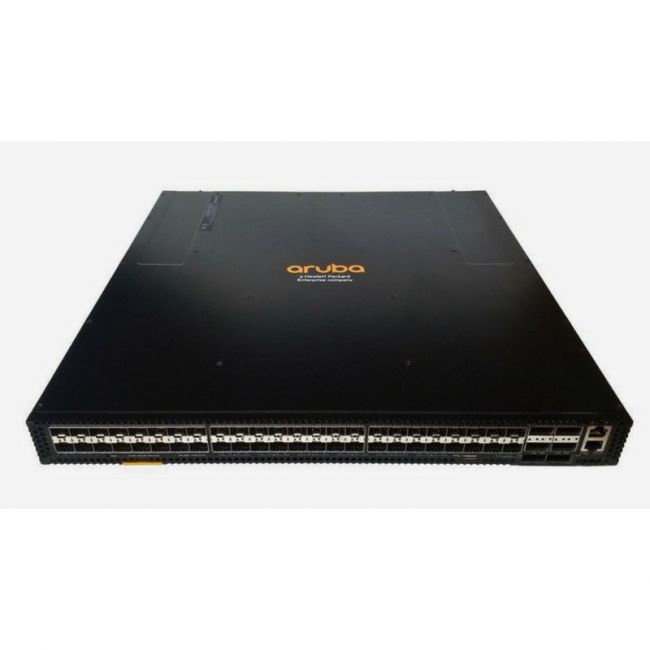

JL479A HPE Aruba CX 8320 Series 48-Port 10GBASE-X SFP+ Layer 3 Rack-Mountable Managed Network Switch with 6-Port QSFP+
JL479A HPE Aruba CX 8320 Series 48-Port 10GBASE-X SFP+ Layer 3 Rack-Mountable Managed Network Switch with 6-Port QSFP+
Couldn't load pickup availability
| Product Overview |
|---|
|
The HPE Aruba CX 8320 JL479A is a powerful and reliable managed network switch designed to meet the needs of modern enterprise networks. With a high switching capacity of 2.5 Tbps, it offers the speed and scalability necessary to handle high-traffic environments. Equipped with 48 x 10GBASE-X SFP+ and 6 x 40GBASE-X QSFP+ ports, the switch provides ample connectivity for both small and large-scale data center operations. Its advanced security features and extensive routing capabilities ensure that the switch supports both performance and protection. The dual power supplies and hot-swappable fans further enhance its reliability and ease of maintenance, making it an ideal solution for businesses seeking a high-performance, secure, and reliable network backbone. |
| General Information | |
|---|---|
| Brand | Aruba Networks |
| Part Number | JL479A |
| Series | CX 8320 Series |
| Condition | Refurbished |
| Device Type | Managed |
| Enclosure Type | Rack-Mountable 1U |
| Technical Information | |
|---|---|
| Switch Ports | 48 x 10GBASE-X SFP+; 6 x 40GBASE-X QSFP+ |
| Switching Capacity | 2.5 Tbps |
| Switch Forwarding Rate | 1,905 Mpps |
| IPv4 Routing Entries | Up to 128K |
| IPv6 Routing Entries | Up to 64K |
| DRAM | 16 GB |
| Flash Memory | 8 GB |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1AX, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad |
| Routing Protocol | BGP, OSPF, VRF, Static Routing |
| VLAN IDs | 4,094 |
| Connector Type | SFP+, QSFP+, RJ-45 (Management) |
| Performance | |
|---|---|
| Jumbo Frame | 9216 Bytes |
| Mac Address | Up to 128K entries |
| Management & Configuration | |
|---|---|
| Security | IEEE 802.1X, MACsec, RADIUS, TACACS+, Access Control Lists (ACLs) |
| Remote Management Protocol | CLI, SNMP, HTTP/HTTPS, Telnet/SSH, RADIUS, TACACS+ |
| Power & Cooling | |
|---|---|
| Fans | 5 x Hot-swappable, field-replaceable fans |
| Power | 100-127V AC or 200-240V AC, 50/60 Hz |
| Power Supply | 2 x 400W AC Power Supplies (hot-swappable) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.7 in x 17.4 in x 19.9 Inches |
| Weight | 21.10 |
