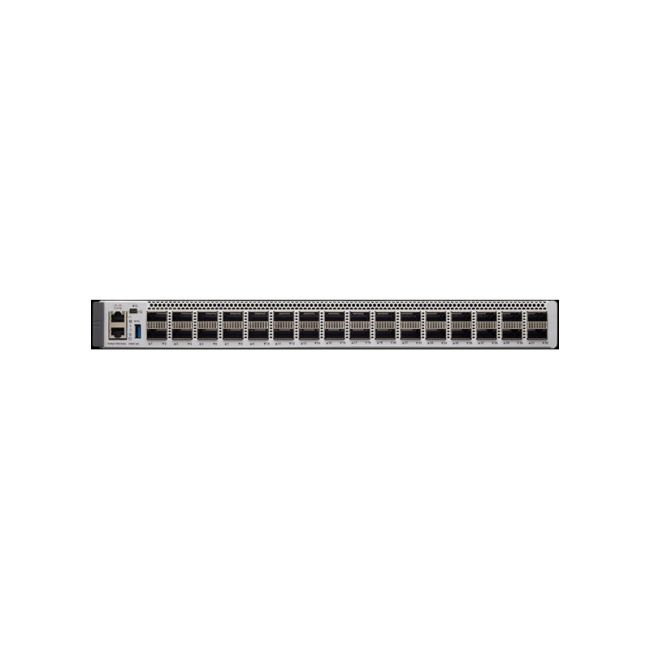

C9500-32C-A Cisco Catalyst 9500 Network Advantage 32-Port Managed Rack-Mountable Switch
C9500-32C-A Cisco Catalyst 9500 Network Advantage 32-Port Managed Rack-Mountable Switch
Regular price
$7,147.00 USD
Regular price
Sale price
$7,147.00 USD
Unit price
/
per
Couldn't load pickup availability
| Product Overview |
|---|
|
The Cisco Catalyst 9500 C9500-32C-A Switch offers 32 x 100 Gigabit Ethernet QSFP28 ports, providing ultra-fast network connectivity for high-demand environments. With a switching capacity of up to 6.4 Tbps and a forwarding rate of up to 2 Bpps, it ensures efficient and reliable performance. The switch supports up to 256,000 IPv4 and 128,000 IPv6 routing entries, and features advanced security protocols including IEEE 802.1X authentication, MACsec encryption, and RBAC. Its dual redundant, hot-swappable 1500W AC power supplies, along with hot-swappable fans, ensure high availability and reliability, making it ideal for mission-critical applications. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | C9500-32C-A |
| Series | Catalyst 9500 |
| Condition | Refurbished |
| Device Type | Managed |
| Enclosure Type | Rack-Mountable 1U |
| Technical Information | |
|---|---|
| Switch Ports | 32 x 100 Gigabit Ethernet QSFP28 ports |
| Switching Capacity | Up to 6.4 Tbps |
| Switch Forwarding Rate | Up to 2 Bpps |
| IPv4 Routing Entries | Up to 256,000 |
| IPv6 Routing Entries | Up to 128,000 |
| DRAM | 16 GB |
| Flash Memory | 16 GB |
| Compliant Standards | IEEE 802.3ba 100GBASE-CR4, IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS Prioritization, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.3ad Link Aggregation Control Protocol |
| Routing Protocol | BGP, OSPF, EIGRP, IS-IS, RIP, Static Routing, Policy-Based Routing (PBR) |
| VLAN IDs | 4,000 |
| Connector Type | QSFP28 for 100 Gigabit Ethernet ports |
| Performance | |
|---|---|
| Jumbo Frame | 9198 Bytes |
| Mac Address | 82,000 entries |
| Management & Configuration | |
|---|---|
| Security | IEEE 802.1X authentication, MACsec encryption, Control Plane Policing (CoPP), Role-Based Access Control (RBAC), Secure Boot and Image Signing |
| Remote Management Protocol | CLI, SNMP v1/v2/v3, HTTP/HTTPS, Telnet/SSH, RADIUS, TACACS+ |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable, redundant fans |
| Power | Typical: 350W, Maximum: 450W |
| Power Supply | Dual redundant, hot-swappable 1500W AC power supplies |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 21.52 Inches |
| Weight | 19.00 |
